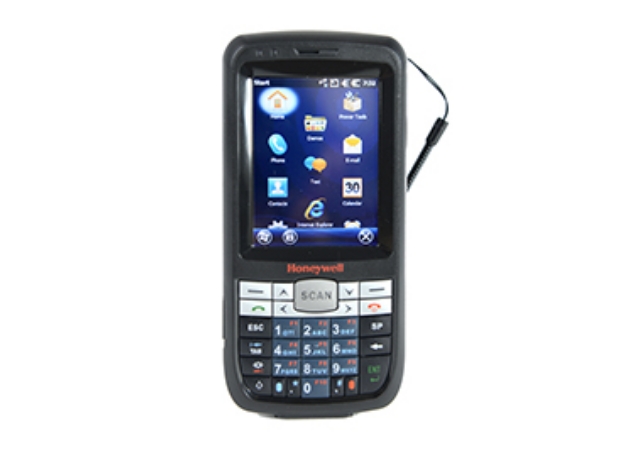

Honeywell D60s

CALL/SMS VIA WHATSAPP

PDT Honeywell D60s

Specifications

MECHANICAL

Dimensions
136 mm x 66 mm x 28.7 mm (5.35 in x 2.60 in x 1.13 in)

Weight
246.6 g (8.7 oz)

ENVIRONMENTAL

Operating Temperature
-10°C to 50°C (14°F to 122°F)

Storage Temperature
-20°C to 60°C (-4°F to 140°F)

Humidity
5 to 95% relative humidity (non-condensing)

Drop
Designed to withstand multiple 1.2 m (4 ft) drops to concrete

Tumble
Designed to withstand up to 800 (0.5 m) tumbles per IEC 60068-2-32 specification

ESD
+/- 15KV Air and +/- 8KV Contact

Environmental Sealing
Independently certified to meet IP54 standards for moisture and particle intrusion

SYSTEM ARCHITECTURE

Processor
TI AM3715 CortexA8 800 MHz

Operating System
Microsoft® Windows® Embedded Handheld 6.5

Memory
256 MB RAM x 512 MB FLASH

Display
7.1 cm (2.8 in) color LCD QVGA (240 x 320)

Touch Panel
4-wire resistive touch panel and support for finger touch and stylus

Keypad
Standard keyboards: 46-key QWERTY or 30-key Numeric, dedicated scan key, volume up and down keys, side scan key, hard-reset key

Audio
Speaker, HAC receiver, microphone

I/O Ports
I/O connection(USB2.0,RS232,DC charging), Micro USB 2.0, 3.5 mm headphone/mic combo jack

Camera
5.0 mega pixel camera with autofocus and flash

Storage Expansion
User accessible microSD slot (SDHC compatible). Please check with your Honeywell representative for available qualified card options.

Battery
Li-ion 3.7 V, 3340 mAh

Hours of Operation
13 hours (decoding and sending data over WLAN every 9 seconds) 7.5 hours (decoding and sending data over WWAN every 15 seconds, GPS continuously receiving data)

Decode Capabilities
Dedicated imager capable of decoding standard 1D and 2D bar code symbologies

Development Environment
Honeywell SDK for Microsoft® Windows® Embedded Handheld 6.5

HSM Application Software
Honeywell Powertools® and Demos, Remote MasterMind™ for Mobility remote device management

Warranty
1 year factory warranty

WIRELESS CONNECTIVITY

WWAN

Multi-mode UMTS/HSPA+ and GSM/GPRS/EDGE operation HSPA 3GPP (DL: 14.4Mbps, UL: 5.7Mbps) with GPS Bands supported:

• PHS8-US:
  - Dual band 850/1900MHz GSM/GPRS/EDGE
  - Dual band 850/1900MHz UMTS/HSPA+
• PHS8-E:
  - Dual band 900/1800/GSM/GPRS/EDGE
  - Dual band 900/2100MHz UMTS/HSPA+
• PHS8-P:
  - Quad band 850/900/1800/1900/GSM/GPRS/EDGE
  - 800/850/900/1900/2100MHz UMTS/HSPA+

WLAN
IEEE 802.11 b/g/n; WiFi™ certified

WLAN Security

• DeviceScape Supplicant
• WEP, 802.1x, LEAP, TKIP, MD5, EAP-TLS, EAP-TTLS, WPA-PSK, WPA v2.0, and PEAP

WPAN
2.4 GHz (ISM Band), Bluetooth® v2.1+EDR; 10 m (33 ft) line of sight
